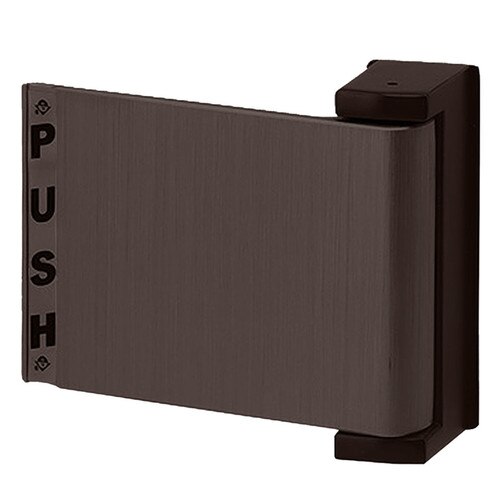

4590 02 00 313 Paddle


SKU: ADA010554
MFG: Adams Rite
Flat Deadlatch Paddle, Push to Left, For 1-3/4 In. Thick Door, RHR (or Exterior of LH), Dark Bronze Anodized
Current Stock: 8

This item is IN STOCK

Details

The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle.


Flat Deadlatch Paddle, Push to Left, For 1-3/4 In. Thick Door, RHR (or Exterior of LH), Dark Bronze Anodized

  • Function: An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Latch, or 2190/2290 Interconnected Deadbolt/Deadlatch.
  • Operation: Available in four modes: push to left, push to right, pull to left, and pull to right.
  • Specifications:
  • Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available.
  • Escutcheon: Zinc alloy with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
  • Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.
  • Options: First dash number specified operation (handing) and compatible latch. Second dash number can be used to specify non-standard units for doors thicker than 1-3/4”. See dash table on catalog page.
  • Standard Package: Individually boxed with mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug. Shipping weight: 1-1/2 lb.

Specs

Series: 4590 Deadlatch Paddle
Manufacturer: Adams Rite
Vendor: Assa Abloy
Finish: Dark Bronze Anodized Aluminum 313
Function:
Handed:
Grade:
Limited Warranty: 5 Years
Fire Rating:
UL Listing:
Ansi Code:
