Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.

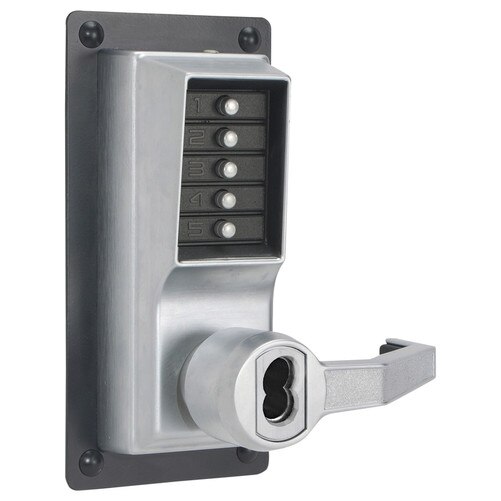

Exit Trim Lever Lock, Combination and Key Override, Right Hand Reverse, Schlage FSIC Prep, Less Core, Satin Chrome

• Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed; not field reversible
• Exit Device Strike: Supplied with Exit Device
• Tailpiece:
  • 2¾" (70 mm) tailpiece for Exit Device operation from outside
  • Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)
• Minimum Stile Recommended: 5" (127 mm)
• Weight: 8 lbs. (3.6 kg)
• Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
• Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
• Door Preparation: Recessed through bolts may be required for Exit Device preparation
• Door Thickness:
  • 1⅜" (35 mm) to 2¼" (57 mm)
  • Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
• Durability: Weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty

Series: Simplex LP1000 Series
Manufacturer: DormaKaba
Vendor: DormaKaba
Finish: Satin Chrome 626/US26D
Function:
Grade:
Limited Warranty:
Fire Rating:
UL Listing:
Ansi Code:
