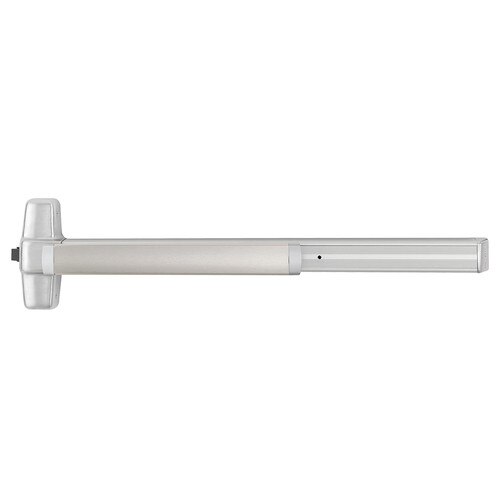

99 EO 628 36" Exit Device


SKU: VON245100
MFG: Von Duprin
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Device, Exit Only, Less Trim, Hex Key Dogging, Satin Aluminum Clear Anodized Finish, Non-handed
Current Stock: 8

This item is IN STOCK

Details

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.


Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Device, Exit Only, Less Trim, Hex Key Dogging, Satin Aluminum Clear Anodized Finish, Non-handed

  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking, 3/4" (19mm) throw
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

Specs

Series: 99 Series Rim Exit Device
Manufacturer: Von Duprin
Vendor: Allegion
Finish: Satin Aluminum Clear Anodized 628/US28
Function:
Handed:
Grade: Grade 1
Limited Warranty: 3 Years
Fire Rating: No
UL Listing: UL 305
Ansi Code: A156.3
