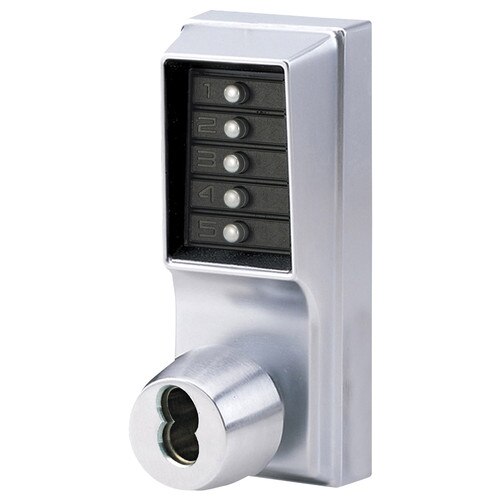

1021B 26D 41 Pushbutton Lock

This mechanical lock, with knob option, elimates the material and labor expense of battery replacements.

Grade 1 Pushbutton Cylindrical Knob Lock, Combination Entry Function with Key Override, 2-3/4" Backset, 1/2" Throw Latch, 6/7-Pin SFIC Prep, Less Core, Satin Chrome Finish, Field Reversible

• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed for left-hand doors; easily field reversible
• Operation Modes:
  • Pushbutton Access
  • Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
  • Lockout (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only.
• Economical: A cost effective access control solution

Series: Simplex 1000 Series
Manufacturer: DormaKaba
Vendor: DormaKaba
Finish: Satin Chrome 626/US26D
Function: Entry
Grade: Grade 1
Limited Warranty: 3 Years
Fire Rating: 3 Hours {A}
UL Listing: ANSI 156.2 Grade 1
Ansi Code: 156.2
