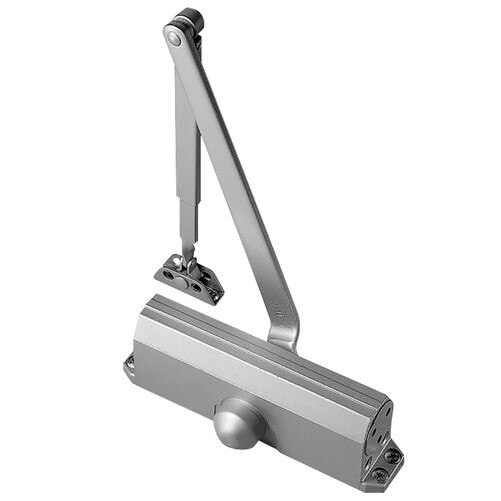

1604 BC 689 Door Closer

The 1600BC Series is designed to fit almost any application and are a top choice of engineers.

Tri-Packed Door Closer, Size 4, Backcheck, Aluminum Painted

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
• Closers shall be surface mounted and shall project no more that 2-7/8" from the surface of the door.
• Closers shall be non-handed to permit installation of doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow the door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall be sized for each door.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep and latch speed.
• [Closers shall have adjustable backcheck cushioning controlled by a hex key adjusted valve.]
• [Closers shall have adjustable delayed action closing controlled by a hex key adjusted valve.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% (+/-7-1/2%) power adjustment
• Environmental Product Declaration (EPD) certified

Series: 1600BC Series Closers
Manufacturer: Norton
Vendor: Assa Abloy
Finish: Aluminum Painted 689/US28
Function:
Handed:
Grade: Grade 1
Limited Warranty: 15 Years
Fire Rating: 3 Hours {A}
UL Listing:
Ansi Code:
