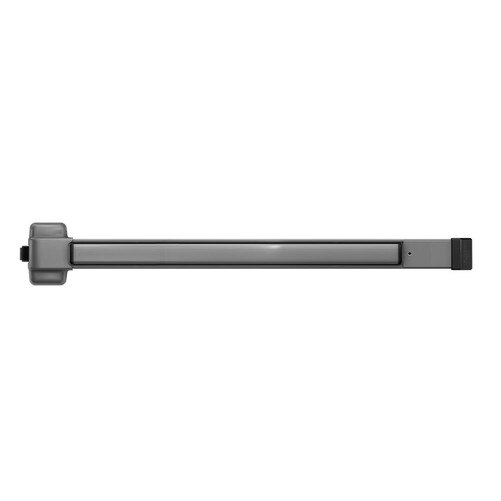

22EO 689 36" Exit Device
Details
Rim exit device for all types of single and double doors with mullion.
Grade 1 Rim Exit Device, Wide Stile Pushpad, 36", Exit Only, Accepts Various Trim, Less Trim, Hex Key Dogging, Aluminum Painted Finish, Non-Handed
- Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths: 3' (914 mm), 4' (1219 mm)
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
- Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
- Projection push bar: Push bar neutral - 3 3/4" (95 mm) push bar depressed - 3" (76 mm)
- Latch bolt: Deadlocking, 3 /4" (19 mm) throw
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
- Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
- Mechanical options: GBK glass bead kit AX accessible device
- Dogging feature: Hex key dogging standard
- Dogging options: LD less dogging
- Strikes: 299 – Dull black
Specs
Series: 22 Series Rim Exit Device
Manufacturer: Von Duprin
Vendor: Allegion
Finish: Aluminum Painted 689
Function:
Handed:
Grade: Grade 1
Limited Warranty: 3 Years
Fire Rating: No
UL Listing: UL Listed
Ansi Code: A156.3 2008
Manufacturer: Von Duprin
Vendor: Allegion
Finish: Aluminum Painted 689
Function:
Handed:
Grade: Grade 1
Limited Warranty: 3 Years
Fire Rating: No
UL Listing: UL Listed
Ansi Code: A156.3 2008
Resources
PDF - Von Duprin 22 ALK Alarm Kit Installation Instructions
PDF - Von Duprin 22 Rim Device Installation Instructions
PDF - Von Duprin 22 Rim Device Installation Instructions (French)
PDF - Von Duprin 22/98/99 Series Device with Active Trim Cylinder Tailpiece Guide Retrofit Installation Instructions
PDF - Von Duprin 22 Series Catalog
PDF - Von Duprin 22 Rim Device Installation Instructions
PDF - Von Duprin 22 Rim Device Installation Instructions (French)
PDF - Von Duprin 22/98/99 Series Device with Active Trim Cylinder Tailpiece Guide Retrofit Installation Instructions
PDF - Von Duprin 22 Series Catalog
