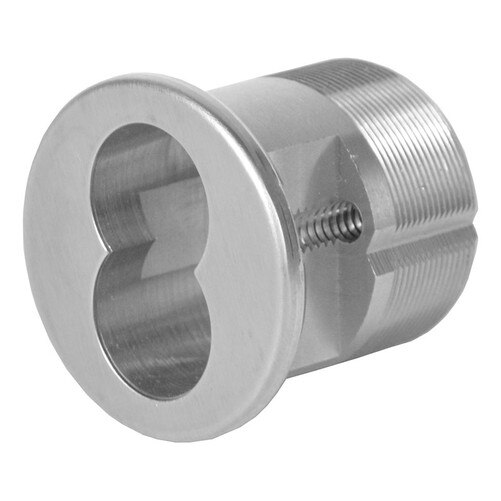

3070 178 626 (334F24) Rim Cylinder Housing

Interchangeable cores provide rekeying convenience for virtually all types of keying systems.

6-Pin Rim Cylinder Housing, Satin Chrome

• Advantages

Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.

• Applications

IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.

• Operations

All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.

• Cores

Cores are available in 6-pin (standard), 7-pin, security and Pyramid. Two nickel silver change keys are furnished standard per core. Control keys will be furnished when ordered.

• Construction Keying

Corbin Russwin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.

• Core Marking

Concealed Key Control (CKC) is available for all Corbin Russwin cores.

Series: Interchangeable Core Cylinders
Manufacturer: Corbin Russwin
Vendor:
Finish: Satin Chrome 626/US26D
Function:
Handed:
Grade:
Limited Warranty: 1 Year
Fire Rating:
UL Listing:
Ansi Code:
