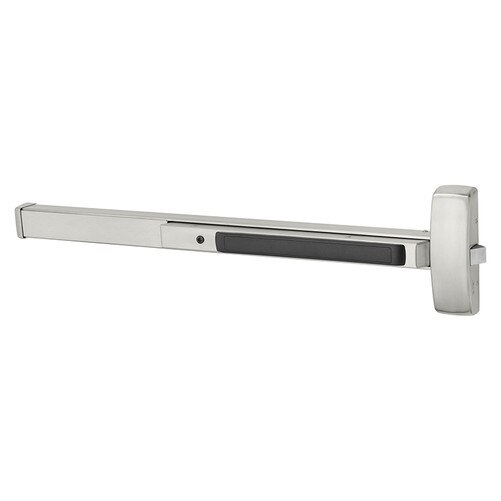

43 8888F No Trim US32D Exit Device

The 8800 series is designed for standard width stile applications on wood and metal doors.

Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Device, Exit Only, Flush End Cap, Hex Key Dogging, Satin Stainless Steel Finish, Field Reversible

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.

Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Features:

• Single point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 - Grade 1
• UL Fire and Panic listed

Series: 8800 Series Rim Exit Devices
Manufacturer: Sargent
Vendor: Assa Abloy
Finish: Satin Stainless Steel 630/US32D
Function:
Handed:
Grade: Grade 1
Limited Warranty: 5 Years
Fire Rating: No
UL Listing: UL10C & UL305
Ansi Code: ANSI/BHMA A156.3
