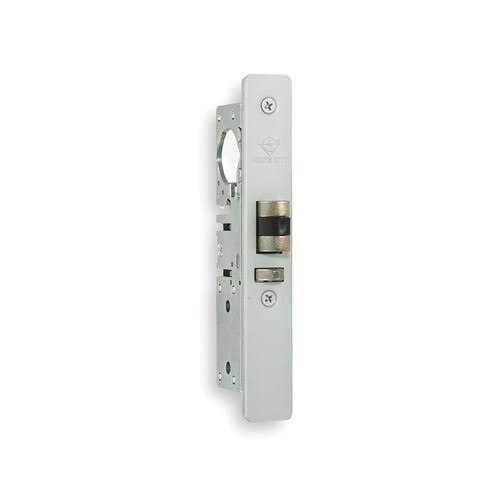

4510 35 101 628 Deadlatch

4510 Standard Duty Deadlatches provide flexible traffic control during and after business hours.

Standard Duty Deadlatch, Flat Faceplate, Guarded Latch, 1-1/8" Backset, 4-5/8" Mortise Strike, Satin Aluminum Clear Anodized Finish, Left-Handed or Right Hand Reverse

• Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
• Cylinder Backset: 7/8”, 31/32”, 1-1/8” or 1-1/2” only
• Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
• Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
• Auxiliary Bolt: All metal. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
• Strikes: Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush. Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for centerhung doors.
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.
• Standard Package: Individually boxed with strike, and machine screws for mounting. Cylinders, paddles, and handles available separately. Shipping weight: 1-1/4 lbs.

Series: 4510 Standard Duty Deadlatch
Manufacturer: Adams Rite
Vendor: Assa Abloy
Finish: Satin Aluminum Clear Anodized 628/US28
Function:
Grade:
Limited Warranty: 5 Years
Fire Rating:
UL Listing:
Ansi Code:
