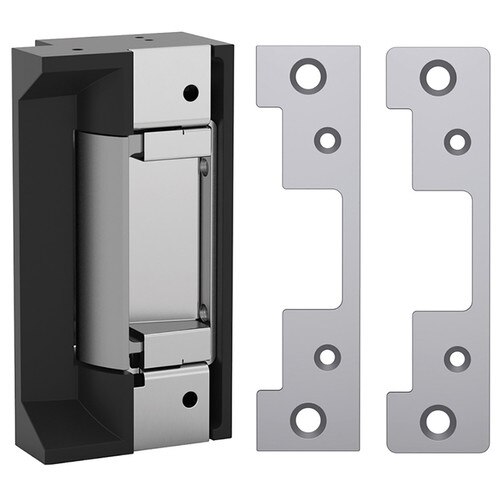

5000C 12/24 VDC 630 Electric Strike

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb.

Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Satin Stainless Steel

Frame application

• Metal
• Wood

Electrical

• .24 Amps at 12 VDC/VAC
• .12 Amps at 24 VDC/VAC
• DC continuous duty/AC intermittent duty only

Standard Features

• Tamper resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 500,000 cycles
• Field selectable fail secure/ fail safe
• Dual voltage 12 or 24 VDC/VAC
• Non-handed
• Internally mounted solenoid
• Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
• Strike body depth 1-1/16"
• Plug-in connector
• Trim enhancer included
• Five year limited warranty

Optional Features

• LBM - Latchbolt monitor

Finishes

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 629 - Bright stainless steel
• BLK - Black
• *Complete Pacs are only available in the 630 finish

Series: 5000 Series Electric Strikes
Manufacturer: HES
Vendor: Assa Abloy
Finish: Satin Stainless Steel 630/US32D
Function:
Handed:
Grade: Grade 1
Limited Warranty: 5 Years
Fire Rating: No
UL Listing:
Ansi Code:
