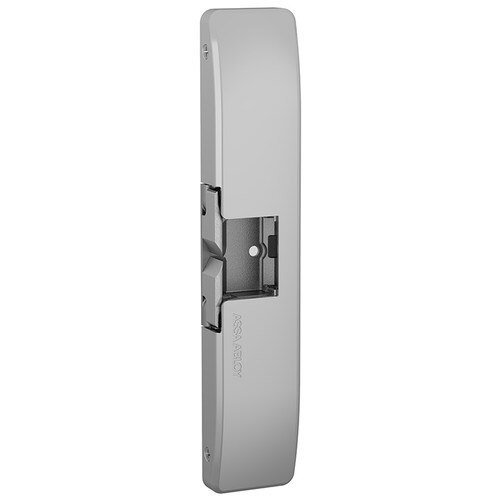

9600 12/24V 630 Genesis Electric Strike

The HES 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latch.

Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Surface Mounted, 3/4" Thickness, Satin Stainless Steel Finish

Frame Application

• Metal
• Wood

Electrical Features

• .45 Amps at 12VDC* continuous duty
• .25 Amps at 24VDC* continuous duty

Standard Features

• Installs in metal or wood frames
• Separate base and cover for easy adjustments
• Stainless steel construction
• Tamper resistant
• Static strength 2,000 lbs.
• Dynamic strength 120 ft-lbs.
• Endurance 1,000,000 cycles
• Field selectable fail safe/fail secure
• Dual voltage 12 or 24 VDC
• Horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Accommodates up to 3/4" Pullman latch
• Five-year limited warranty

Optional Features

• LBM - Latchbolt monitor
• LBSM - Latchbolt strike monitor

Finishes

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 613E - Dark oxidized satin bronze
• 629 - Bright stainless steel

Series: 9600 Series Electric Strikes
Manufacturer: HES
Vendor: Assa Abloy
Finish: Satin Stainless Steel 630/US32D
Function:
Handed:
Grade: Grade 1
Limited Warranty: 5 Years
Fire Rating: No
UL Listing:
Ansi Code:
