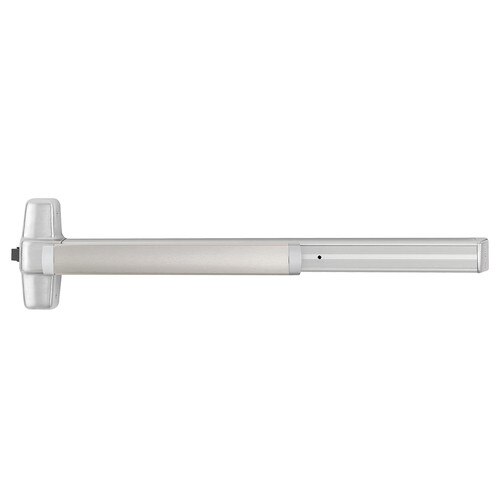

99 EO 626 36" Exit Device
Details
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Device, Exit Only, Less Trim, Hex Key Dogging, Satin Chrome Finish, Non-handed
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Specs
Series: 99 Series Rim Exit Device
Manufacturer: Von Duprin
Vendor: Allegion
Finish: Satin Chrome 626/US26D
Function:
Handed:
Grade: Grade 1
Limited Warranty: 3 Years
Fire Rating: No
UL Listing: UL 305
Ansi Code: A156.3
Manufacturer: Von Duprin
Vendor: Allegion
Finish: Satin Chrome 626/US26D
Function:
Handed:
Grade: Grade 1
Limited Warranty: 3 Years
Fire Rating: No
UL Listing: UL 305
Ansi Code: A156.3
