ADA compliant except Push Side Track application.

Surface Door Closer, Regular Universal Arm, Thru Bolts, Sprayed Dark Bronze Enamel

• Exceeds 15 Million cycles

• Certified ANSI/BHMA A156.4 Grade 1

• UL 10C listed for positive pressure fire test

• UL / cUL listed for use on fire rated doors

• 25 year limited warranty

• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations

• Self sticking templates supplied for most applications

• Adjustable spring power allows 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory

• One door closer body for all applications. All 1431 are non-handed

• Meets ADA requirements in all applications, except Push Side Track application (except track)

• High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional

• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment

• 1-1/2" diameter piston for superior door control

• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse

• Retrofits existing SARGE

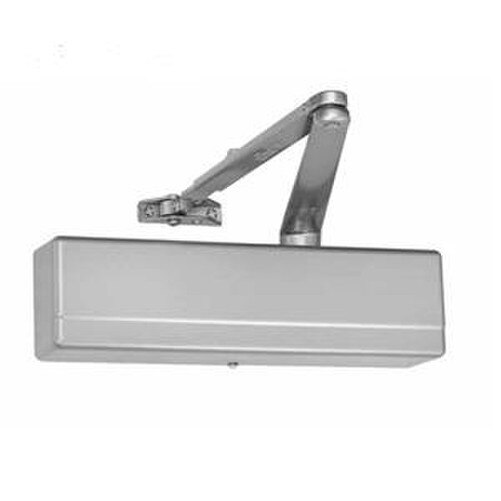

Series: 1431 Surface Door Closers
Manufacturer: Sargent
Vendor: Assa Abloy
Finish: Dark Bronze Painted 695
Function:
Handed:
Grade: Grade 1
Limited Warranty: 25 Years
Fire Rating: 3 Hours {A}
UL Listing:
Ansi Code:
