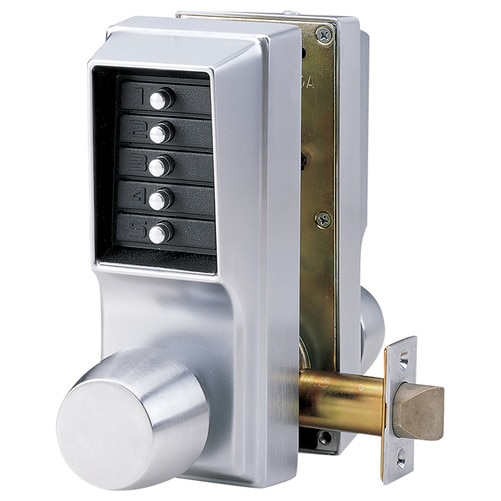

EE1011/EE1011 26D 41 Pushbutton Lock


SKU: SIM010350
MFG: DormaKaba
Cylindrical Knob Lock, Combination Entry Only, Combination Exit Only, 2-3/4" Backset, 1/2" Throw Latch, Satin Chrome
Current Stock: 1

This item is IN STOCK

Details

Provides interior and exterior access by combination.


Cylindrical Knob Lock, Combination Entry Only, Combination Exit Only, 2-3/4" Backset, 1/2" Throw Latch, Satin Chrome

  • Construction: Heavy-duty cylindrical lock with cast front and back housings; cast knobs
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Door Handing: Factory-handed for left-hand doors; easily field reversible
  • Backset: 2¾" (70 mm)
  • Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
  • Strike: Standard strike plate; ASA strike plate
  • Door Preparation: ASA 161-door preparation with additional through bore holes
  • Door Thickness: 1¾" (44 mm) to 2¼" (57 mm); modified lock for more than 2" (51) thick door (up to 2¼") available (specify when ordering)
  • Minimum Stile Recommended: 5" (127 mm)
  • Weight: 10.25 lbs. (4.6 kg)

Specs

Series: Simplex EE1000 Series
Manufacturer: DormaKaba
Vendor: DormaKaba
Finish: Satin Chrome 626/US26D
Function: Entry
Handed:
Grade:
Limited Warranty:
Fire Rating:
UL Listing:
Ansi Code:
