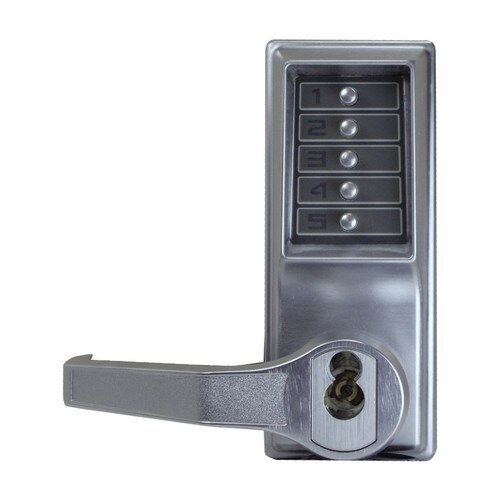

LL1021B 26D 41 Pushbutton Lock

Eliminates the material and labor expense of battery replacements and has a single access-code.

Pushbutton Cylindrical Lever Lock, Combination Entry Function with Key Override, 2-3/4" Backset, 1/2" Throw Latch, 6/7-Pin SFIC Prep, Less Core, Satin Chrome Finish, Left Hand/Left Hand Reverse

• Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
• Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed; not field reversible
• Backset: 2¾" (70 mm), 2⅜" (60 mm)
• Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate; ASA strike plate
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
• Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty

Series: Simplex L1000 Series
Manufacturer: DormaKaba
Vendor: DormaKaba
Finish: Satin Chrome 626/US26D
Function: Entry
Grade:
Limited Warranty: 3 Years
Fire Rating: 3 Hours {A}
UL Listing:
Ansi Code:
