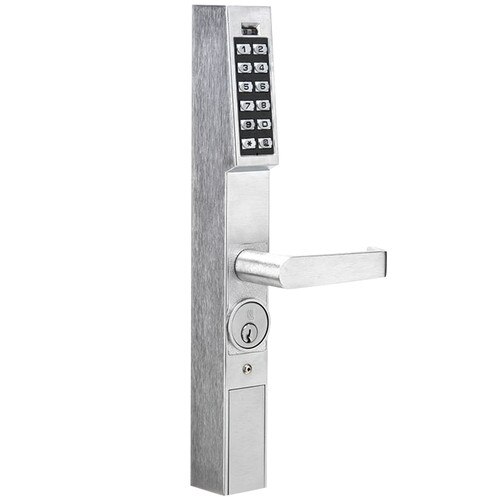

DL1200 US26D1 Narrow Style Lock

Pushbutton aluminum door trim retrofit glass doors with latch locks.

Pushbutton Aluminum Door Trim, 100 Users, Straight Lever, Satin Chrome

• Add keyless convenience to mechanical latch locks from Trilogy’s allmetal, vandal-resistant 12-button keypad and/or automatic timedscheduled locking/unlocking and audit trail with 1300 Series •
• Aluminum door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070*, 4730, 4900 Series and MS1850S* and MS1950S* Series latch locks
• DL1200 supports 100 3-5 digit PIN user codes, fingertip programmable
• DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
• Weatherproof -31˚ to +151˚F (-35˚ to +66˚C) • Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert
• Compact styling 14-3/8”H x 1-5/8”D x 1-3/4”W
• Key override mortise cylinder, 1-1/4” supplied. (Supports 1-1/8”, 1-1/4” and 1-3/8”). Also interchangeable cores supported (Corbin/ Russwin, Yale, Schlage, Medeco.)
• Backsets 31/32”,1-1/8” and 1-1/2”; Stile thickness 1-3/4”
• Non-handed; fully field-reversible
• Two finishes US26D satin & 10B Durondic

Series: DL1200 Narrow Stile Pin Locks
Manufacturer: Alarm Lock
Vendor:
Finish: Satin Chrome 626/US26D
Function:
Handed:
Grade: Grade 1
Limited Warranty: 2 Years
Fire Rating:
UL Listing:
Ansi Code:
